Swedbank integration is used in Estonia and supports Ingenico terminals.
In order to use the Swedbank integration with Erply you need to install the Installer application on your computer and configure the microservice.
Here is the list of devices that are required for integration to work:
- Supported terminal
- PoS station (Computer)
- Ethernet cable capability (router)
Here is the list of the terminals supported by Swedbank integration:
- Move/3500
- Move/3500 & iPP 315
- Desk/3200 & Desk/1500(or 1600)
- iCT220 & iPP 310
1.Install the Installer App
To make the microservice run on the POS, we need the Installer App to be installed and running. Check out the guide for that here.
2.Connect the terminal with your computer
Before beginning any setup processes, connect the terminal to a power outlet and ethernet port.
Now, if the terminal is connected to the internet and powered on we will take the next step.
Important: make sure that the payment terminal is in the same network as the computer is!!!
3.Set up the Swedbank Ingenico micro service in Wizard
From the Wizard, choose Hardware -> Installer App -> Micro-service Manager
After which it'll display Add new micro-service where you can choose any payment integration
Once payment integration is selected - press Continue
After that the payment microservice view is displayed:
Click on the Install latest button:
Then you will see the following view:
Click on the Start button:
Now that payment micro-service is running!
4.Integrating the Payment terminal in Wizard
Navigate to the Hardware -> Integrations and choose if you want to connect the terminal to the company, warehouse or cash register.
Select needed company, warehouse or POS from the dropdown list
Click on the Payment Terminal
Press Continue
Under the Available integrations, choose needed payment integration
If the needed payment micro-service is not displayed there then select it from the “Add New Integration” list:
Click Add
Then the following view will be opened:
Fill your terminal IP into Device IP field
The IP address can be checked in the terminal. Click on the following button:
If there is no such a button please press F button:
Press “1” on the Terminal (Option 1 - Tools)
Press “1” on the Terminal again (Option 1 - HW conf.)
IP is shown in the “IP:” section (the long number like xxx.xx.x.xxx)
Back to the Wizard. Enter the Device Port - 4445
Press Save
5.Configure Swedbank integration at the Brazil POS
When you've finished setting up in Wizard, navigate to the Brazil POS https://epos.erply.com/
Click on the gear button
The POS Settings are opened -> Payment configuration -> Setup Payment gateways and check if the needed payment integration is selected (if not please select it from the Select current integration dropdown list):
Check that Allow fallback to external integration box is ticked (if not please check it!):
Make sure that other payment integration fields are filled:
Just in case, refresh the POS page:
Make a test sale using a card payment in order to make sure that payment microservice is running and a payment terminal is properly configured and connected with a POS.
Receipt printing via Swedbank Ingenico terminal
In order to setup receipt printing via Swedbank Ingenico terminal please follow steps in this article.
Frequently Asked Questions

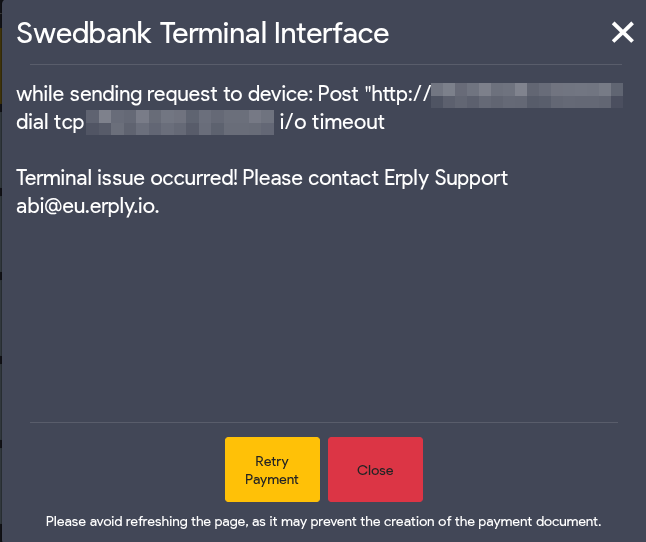

I am unable to make sales with Swedbank integration. I see the following error in the payment modal:
“while sending request to device: Post ”http://xxx.xxx.xx.xxx:4445":dial tcp xxx.xxx.xx.xxx:4445: i/o timeout"
How can I resolve it?
This error in the payment modal means that your POS system does not have connection with a terminal.
Ways to solve the conncetion issue:
- Check the terminal IP address on the terminal and compare it with one that was added in the POS Payment Configuration (POS Settings -> Payment Configuration -> Setup Payment gateways -> Swedbank:Ingenico). Afterwards please click on the “Test connection” button. If there will be a message “Connection OK” it means that connection is back and you can proceed with sales. If you still see “Unable to connect” please try another ways to solve it.
- Unplug the terminal cable and plug in back. Once terminal is ready to use go to the POS Settings -> Payment Configuration -> Setup Payment gateways -> Swedbank:Ingenico. Please click on the “Test connection” button. If there will be a message “Connection OK” it means that connection is back and you can proceed with sales. If you still see “Unable to connect” please try another ways to solve it.
- Check the integrations indicator from the POS header menu (three cables icon). It should have green color. Click on it. Please find the Swedbank Igenico integration from the list. Check the Status column - download and turn on icons shoud be green(in this case please try other ways to solve the intial conncetion issue). If the turn on button is grey it means that the Swedbank microservice is stopped. Please follow the steps from this article part to solve it.
- Contact your bank!
