Setup Brazil POS on Pax A920Pro(UK)

July 9, 2024


The A920Pro Pax terminal is running the Android OS.

Download the Erply PAX application from PAX STORE.

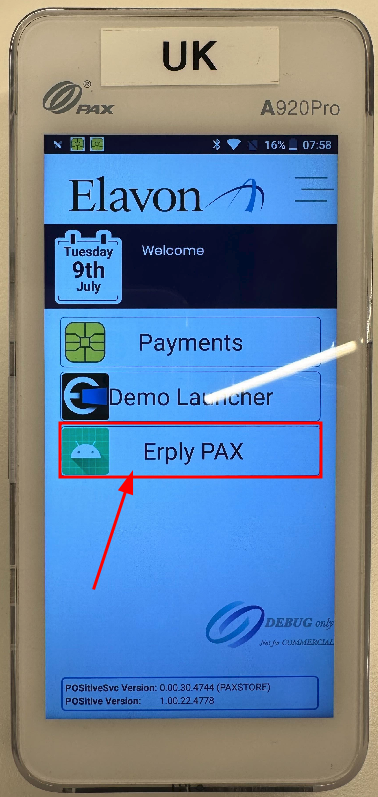

Once done, click on the app. The Brazil POS login page opens on the terminal screen.

Login using your Erply credentials (client code, username and password).

Setup payment integration

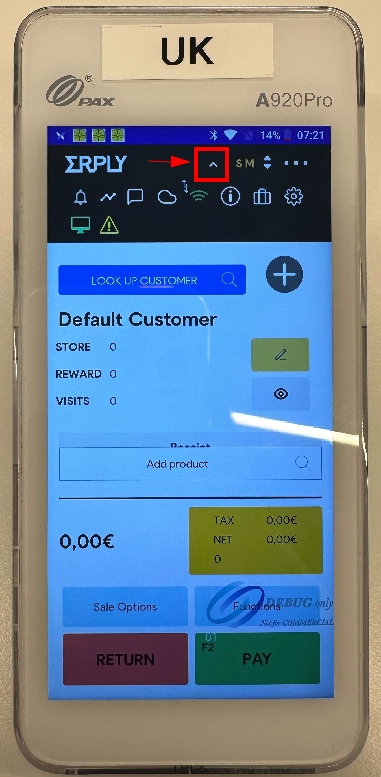

Click on the arrow next to the username.

Click on the “cog” button -> Payment configuration

Click on the “Setup payment gateways”.
From the dropdown list select the “Native wrapper (IOS/android)”.

Click Save.



Setup printing

Click on the arrow (the same button as for payment configuration; picture above)next to the username.

Click on the “cog” button -> Printing configuration

Enable the “Try printing by wrapper”.

Click Save



Additional possibilities

By swiping the screen from right to left you will be able to see additional possibilities:

  • To select the POS environment (production, sandbox, development, cloud front URL)
  • Restart the POS
  • Clear cache and restart the POS
  • Exit the application

For printing:

  • You can configure characters per line on the receipt printout

For payments:

  • Configure terminal timeout in seconds
  • Disable terminal printing
