Which operating system to choose?
Operating system choice will set the path of all the hardware choices you need to make in order to get a working solution specific to your need. We support all the major operating system with a good range of latest versions. See the full list here:
 |  |  |  |  |
Windows 8 Windows 8.1 Windows 10 | Ubuntu 18.xx Ubuntu 20.xx | Since 6.0 | Since iOS 11 | Since Yosemite |
What hardware options do we have?
Erply supports a wide range of hardware, from the most common to very specific and detailed solutions. This is point of sale hardware that we have integrated and know will provide seamless day-to-day work:
- Printers
- Scanners
- Cashdrawers
- Customer Displays
- Card Terminals
- Fiscals
- Scales
- POS Computers
Printers
| PRODUCER | EXACT MODEL | PICTURE | SETUP | OS SUPPORT |
|---|---|---|---|---|

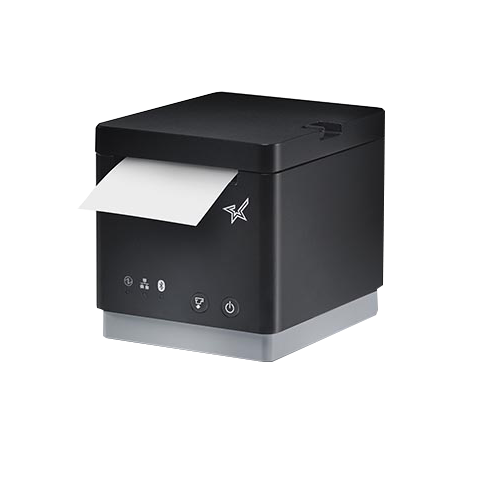

| Star Micronics | mC-Print2 (MCP21LB BK) |  | https://wiki.erply.com/article/1678-printer-setup-guide For Windows/Linux, plug in power cable. Plug in USB to PC. Make sure the printer is displayed under PC's printers. Go on Wizard, under Integrations for Printer choose MCP21--STR-001- ("Get full printer list" should be checked). In the POS, under Printing configuration, check that "Try printing using the go microservice" is checked. | Works on Windows, Linux, iOS, Android. For Bluetooth connection use Erply Wiki guide. |

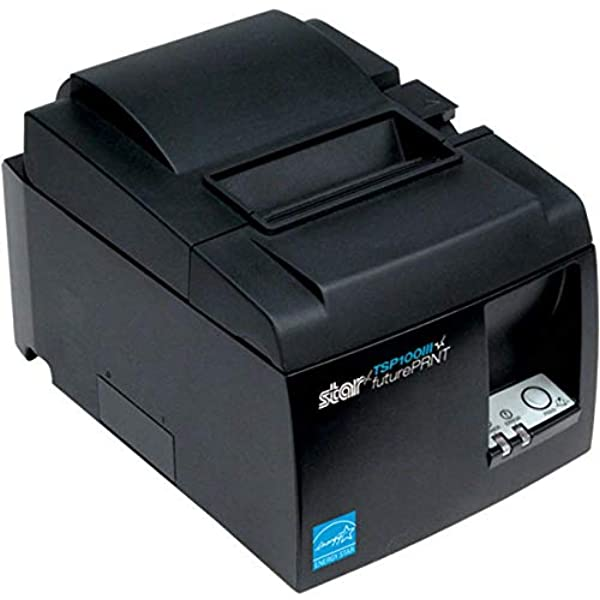

| TSP100III (TSP143III-LAN) |  | https://wiki.erply.com/article/1678-printer-setup-guide Use Erply Wiki guide. Works over LAN connection, make sure the tablet is connected to the same office. In the case of Tõnismäe office, Tipsa Wifi. iOS requires Star PassPRNT app. Android connect through POS Printing configuration. | Works for iOS and Android. For Bluetooth connection use Erply Wiki guide (use LAN connection, printer name: TSP143III-LAN) | |

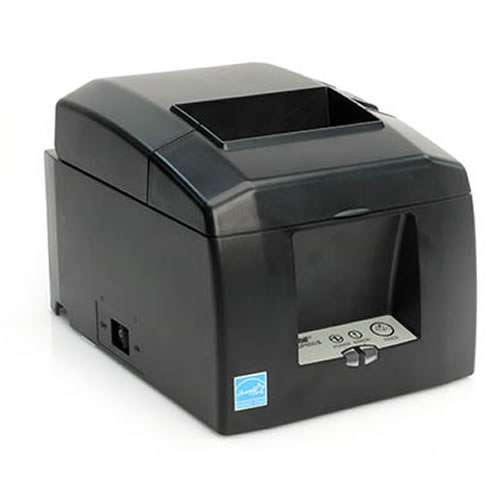

| TSP650 (TSP654--STR_T-001-) |  | For Windows/Linux, plug in power cable. Plug in USB to PC. Make sure the printer is displayed under PC's printers. Go on Wizard, under Integrations for Printer choose TSP654--STR_T-001- ("Get full printer list" should be checked). In the POS, under Printing configuration, check that "Try printing using the go microservice" is checked. | Works only on Windows and Linux. | |
| SM-L300 |  | Works via Bluetooth, no need to connect in the tablet settings. Go to POS --> Settings --> Printing configuration. Check that "Try printing by wrapper" is checked. Open printing settings --> Check that printer connection is Bluetooth --> Search Printers. Correct printer is Star-SM-L300.Close and save Printing settings. | Works on iOS. Use application called POS. | |

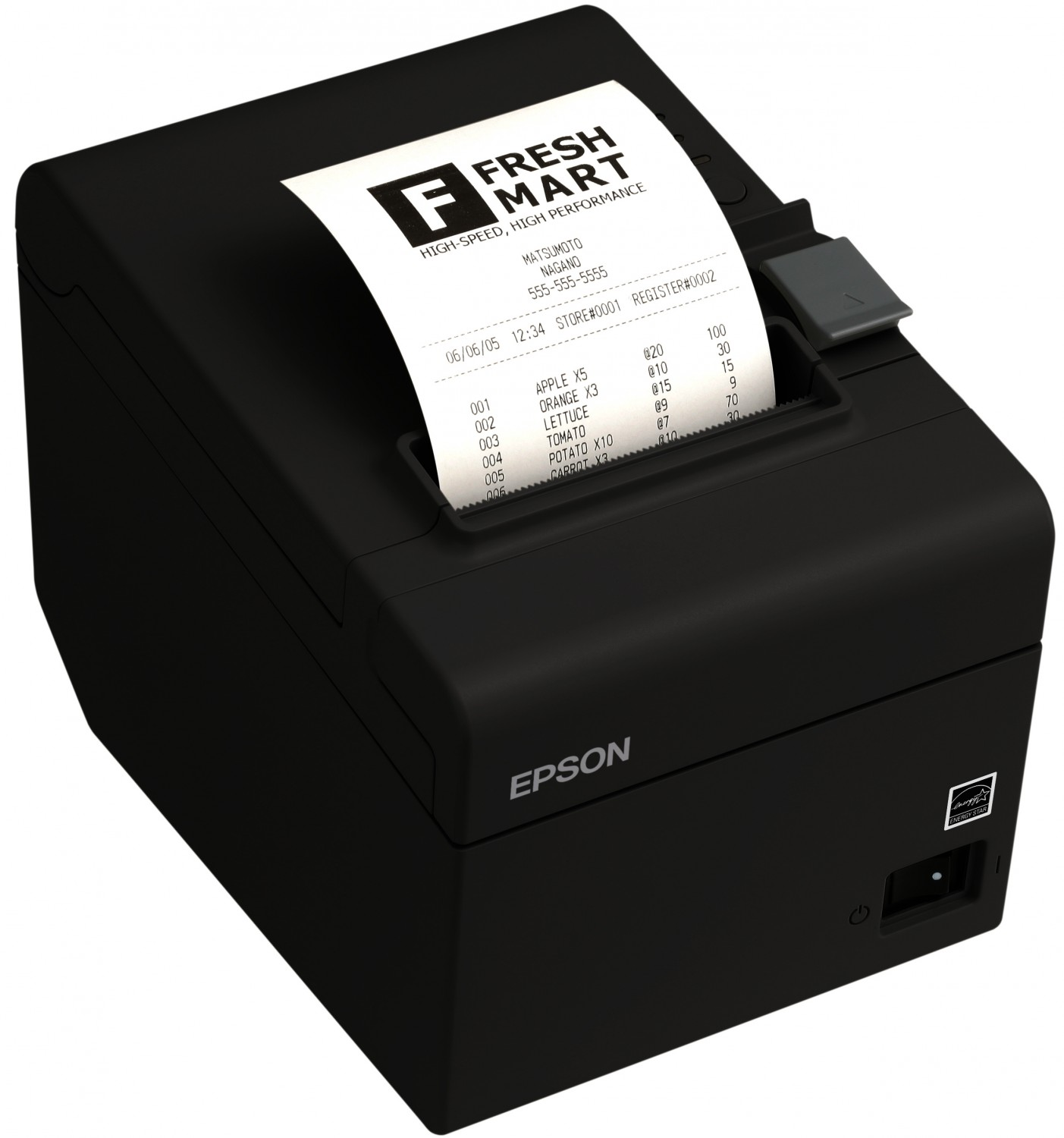

| Epson | TM-T20III |  | https://wiki.erply.com/article/1036-go-microservice-printing-setup-brazil For Windows/Linux, plug in power cable. Plug in USB to PC. Make sure the printer is displayed under PC's printers. Go on Wizard, under Integrations for Printer choose TM-T20III ("Get full printer list" should be checked). In the POS, under Printing configuration, check that "Try printing using the go microservice" is checked. | Works only on Windows and Linux. |

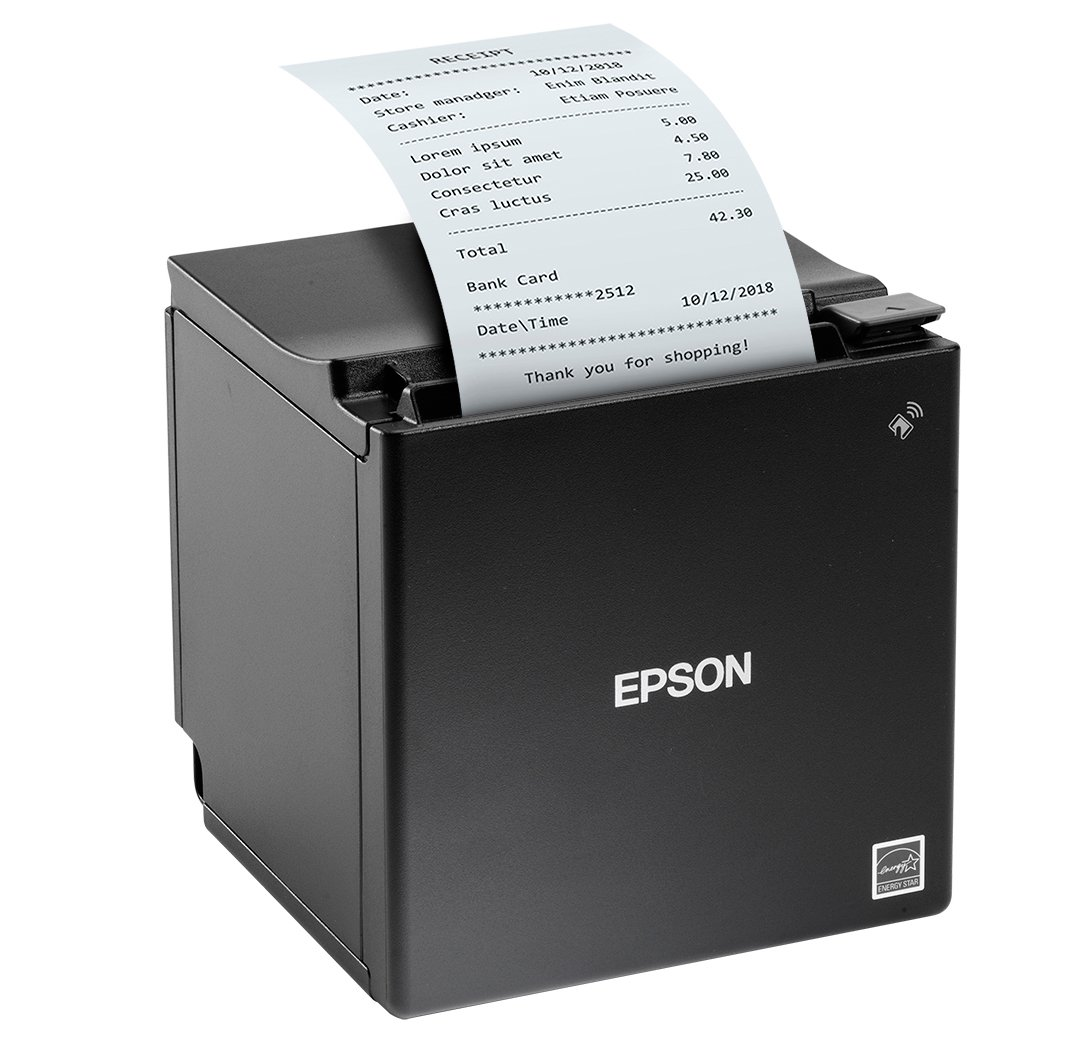

| TM-m30 |  | https://wiki.erply.com/article/1678-printer-setup-guide For Windows/Linux, plug in power cable. Plug in USB to PC. Make sure the printer is displayed under PC's printers. Go on Wizard, under Integrations for Printer choose TM-m30 ("Get full printer list" should be checked). In the POS, under Printing configuration, check that "Try printing using the go microservice" is checked. | Works on Windows, Linux and Android. For Android use POS Super wrapper application and LAN connection. | |
| TM-T88IV |  | For Windows/Linux, plug in power cable. Plug in USB to PC. Make sure the printer is displayed under PC's printers. Go on Wizard, under Integrations for Printer choose TM-T88IV ("Get full printer list" should be checked). In the POS, under Printing configuration, check that "Try printing using the go microservice" is checked. | Check this guide to configure in Linux: https://www.usb-drivers.org/usb-serial-port-adapter-rs-232-in-ubuntu-linux.html Works for Windows. | |

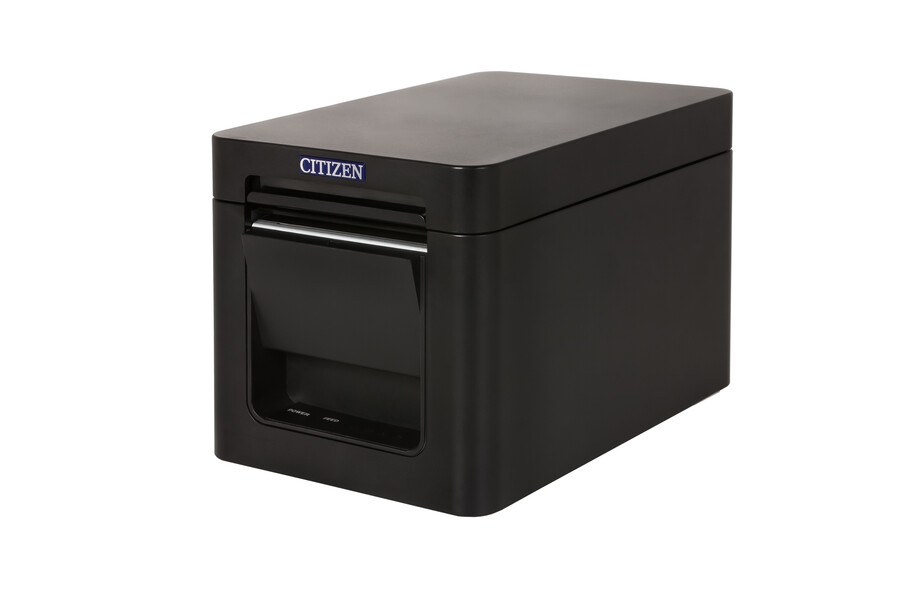

| Citizen | CT-S651 |  | For Windows/Linux, plug in power cable. Plug in USB to PC. Make sure the printer is displayed under PC's printers. Go on Wizard, under Integrations for Printer choose CT-S651 ("Get full printer list" should be checked). In the POS, under Printing configuration, check that "Try printing using the go microservice" is checked. | |
| Diebold Nixdorf | TH250 |  | Has a special USB power cable. Once plugged in configure through Wizard and POS. | Works on Windows, requires a PC with special USB power port. |
Scanners
| PRODUCER | EXACT MODEL | PICTURE | SETUP | OS SUPPORT |
|---|---|---|---|---|

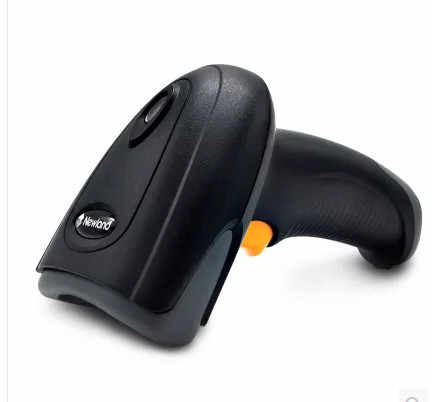

| Newland | NLS-HR22 |  | Plug in scanner. Set up a barcode with barcode generator. Open POS. Open product search on POS and scan. | Doesn't work for iOS. Works on Windows, Linux and Android. |
| Star Micronics | BCR-POP1 |  | Needs to be connected to mPOP. | Works through mPOP. Just plug in under the mPOP unit and check scanner connection through Star Quick Setup Utility app. |

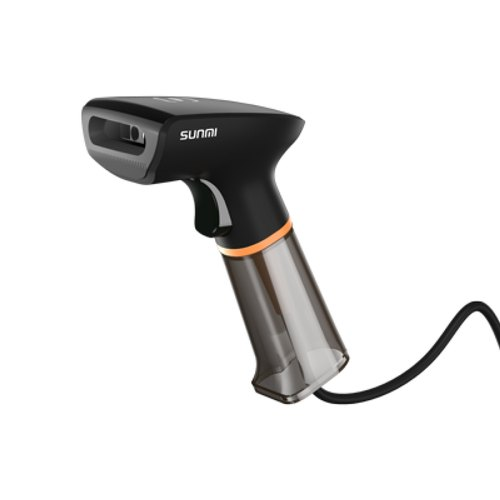

| Sunmi | NS021 |  | Plug in scanner. Set up a barcode with barcode generator. Open POS. Open product search on POS and scan. | Doesn't work for iOS. Works on Windows, Linux and Android. |

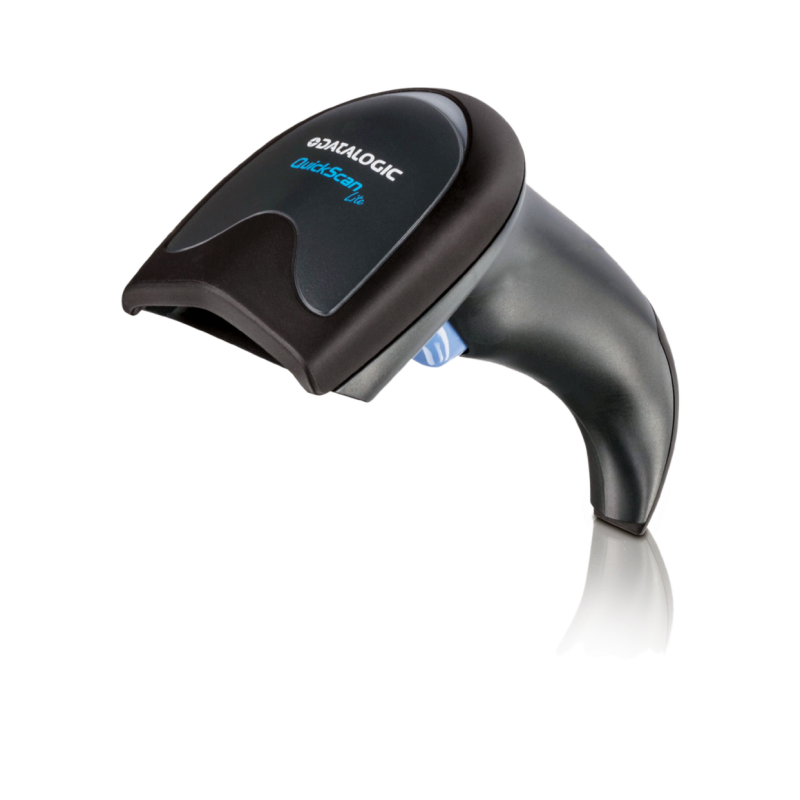

| Datalogic | QW2120-BK |  | Plug in scanner. Set up a barcode with barcode generator. Open POS. Open product search on POS and scan. | Doesn't work for iOS. Works on Windows, Linux and Android. |

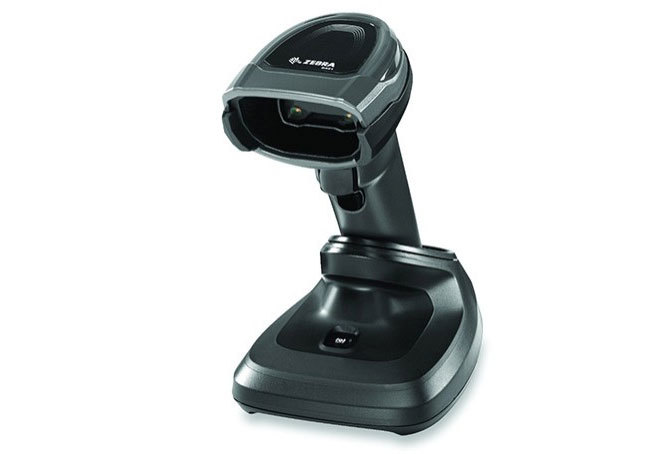

| Zebra | DS2278 |  | ||

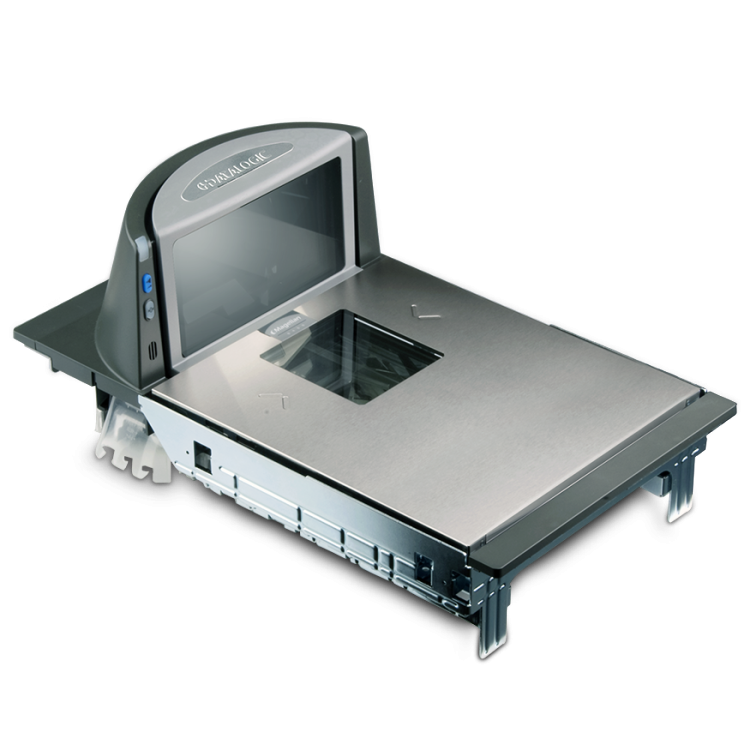

| Magellan | 8300/9300i |  |
Customer Displays
| PRODUCER | EXACT MODEL | PICTURE | SETUP | OS SUPPORT |
| Glancetron/Jarltech | 8035 series |  | https://wiki.erply.com/article/1107-glancetron-8035-8036-hp-lm940 Has 2 USBs, both need to be plugged in. Install driver from link under required drivers. In the wizard check that the microservice is installed and running and check the device name. Make sure that all the credentials are correct. | Works on Windows after installing the driver. For the Linux, in order to find port name, enter ls -l /dev/tty* in the Linux terminal window. Example of what should be added under port name in Wizard looks like this: /dev/ttyUSB0. Make sure all the other credentials are correct. Baud rate: 9600. |
| 8036 series |  | https://wiki.erply.com/article/1107-glancetron-8035-8036-hp-lm940 Plug in USB. In the wizard check that the microservice is installed and running and check the device name. Make sure that all the credentials are correct. | Works on Windows and Linux. To find port name, use the same method as above. Baud rate 19200. | |
| HP | LM940 |  | ||
| Clientron | PM1000 |  |
Scales
| PRODUCER | EXACT MODEL | PICTURE | SETUP | OS SUPPORT |

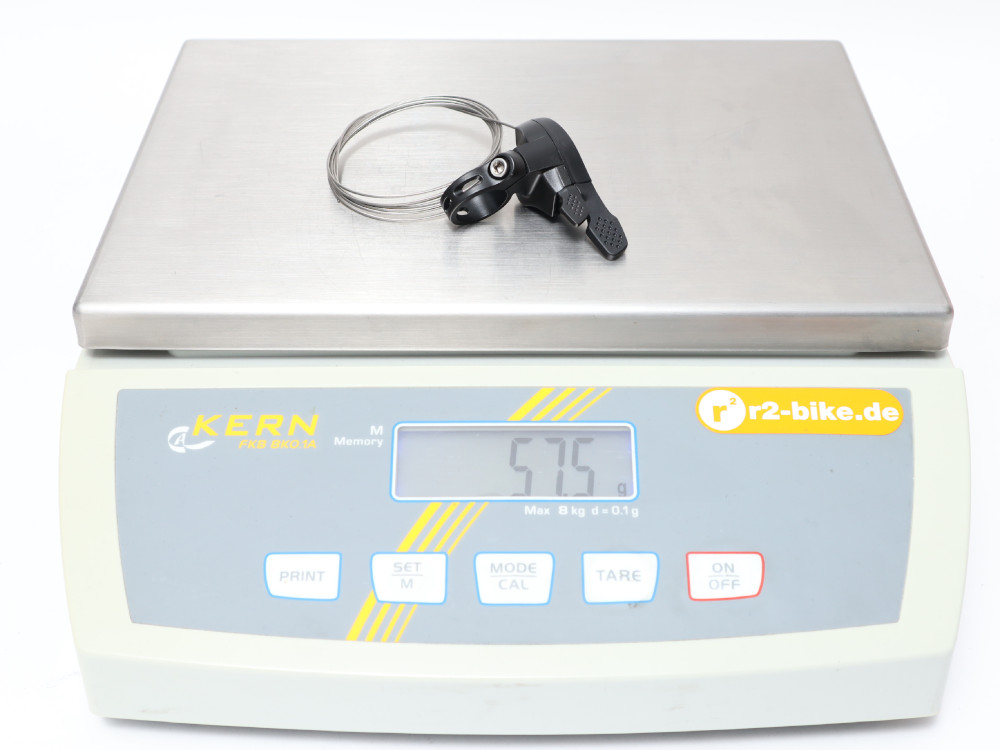

| Kern & Sohn | KIB-TM |  | https://wiki.erply.com/article/1869-cas-pd-ii-scale-setup-on-brazil-pos | |
| ER Jr | ER Jr |  | https://wiki.erply.com/article/1869-cas-pd-ii-scale-setup-on-brazil-pos | |
| Sunmi | S2 |  | https://wiki.erply.com/article/1548-how-to-activate-the-secondary-display-for-customer-display-on-sunmi-devices Plug in power cable. Turn on. Control through Android screen. Open Erply Point of Sale application | Doesn't apply, it's a multifunctional system consisting of Android tablet, scale and a customer display. |
| Magellan | 8300/9300i | |
Cash Drawers
| PRODUCER | EXACT MODEL | PICTURE | SETUP | OS SUPPORT |

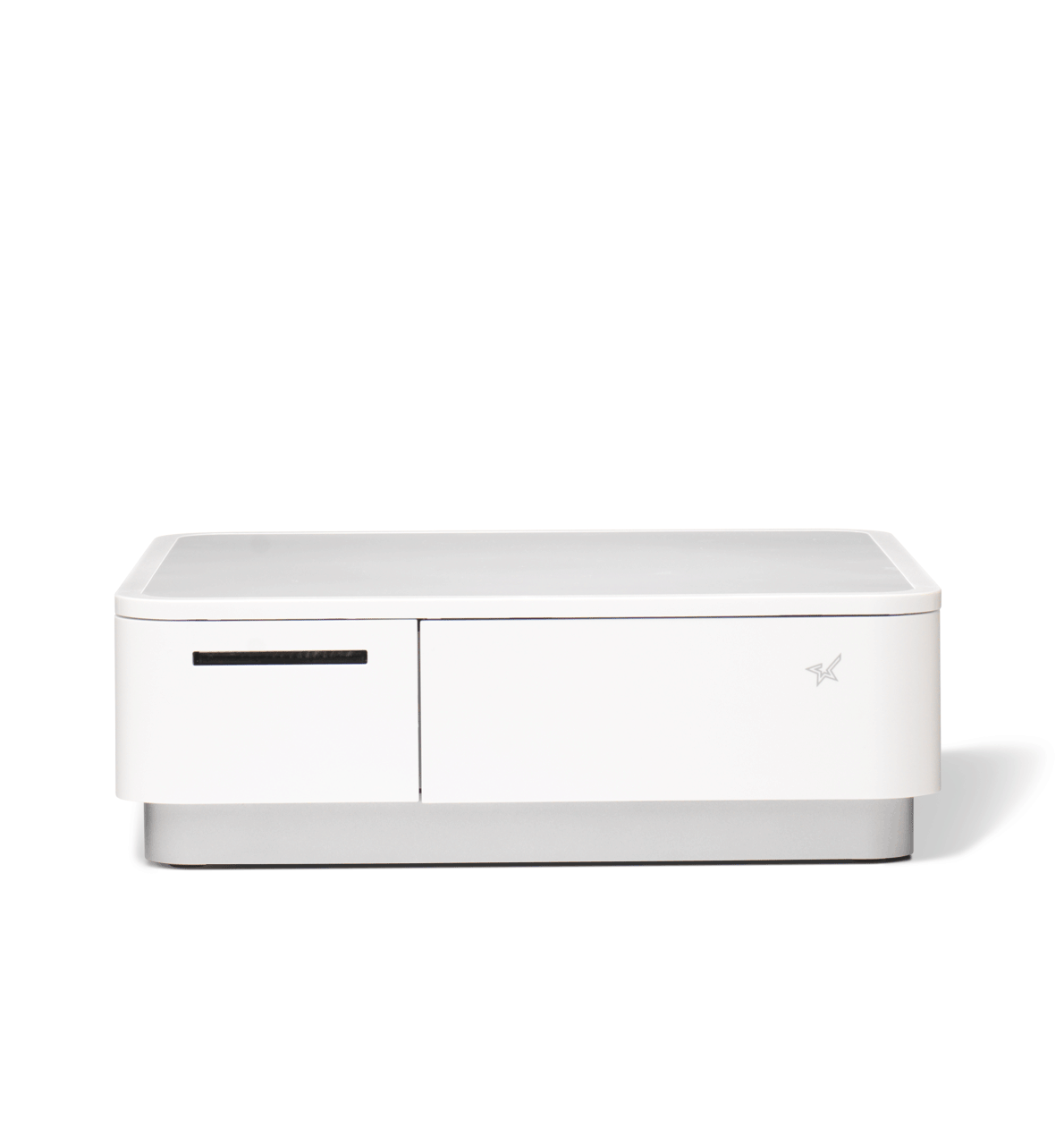

| Star Micronics | mPOP |  | https://wiki.erply.com/article/565-star-mpop-printer-ipad Plug in mPOP. Connect via Bluetooth to iPad. Check iPad settings according to Erply Wiki article. Use Star Quick Setup Utility application in order check that mPOP is connected. Use POS Super Wrapper app. Set up through printing configuration --> Bluetooth connection --> Printer name STAR-POP10 WHT | Tested and works on iOS/Android. |
| Any | 24V Cash Drawer |  | https://wiki.erply.com/article/128-set-up-a-cash-drawer |
Card Terminals
| PRODUCER | EXACT MODEL | PICTURE | SETUP | RELATED MICROSERVICE |
| Verifone | e285 (Genius) |  | https://help.globalpaymentsintegrated.com/1/payment-devices/genius/e285/how-do-i-set-up-my-genius-e285/ | Cayan |
| V400M |  | https://wiki.erply.com/article/1238-adyen-integration-pos-setup Plug in power cable and connect with Ethernet cable. | Adyen | |
| MX915 (Cayan) G1 & G2 |  | https://wiki.erply.com/article/1887-cayan Plug in power cable and connect with Ethernet cable. | Cayan | |
| MX925 (Tripos) |  | Tripos | ||
| M400 (Cayan) |  | https://wiki.erply.com/article/1887-cayan Plug in power cable and connect with Ethernet cable. | Cayan | |
| P400 Plus |  | https://wiki.erply.com/article/1238-adyen-integration-pos-setup Plug in power cable and connect with Ethernet cable. | Moneris & Adyen (depends on the terminal) | |
| TSYS | Genius mini |  | https://wiki.erply.com/article/529-genius-mini Bluetooth | / |
| Ingenico | Move/3500 |  | https://wiki.erply.com/article/1099-estonia-ingenico-terminals Plug in power cable and connect with Ethernet cable. | Swedbank-ingenico (depends on the terminal) |
| Move/3500 & iPP 315 |  | / | / | |
| Desk/3200 & Desk/1500 |  | https://wiki.erply.com/article/1099-estonia-ingenico-terminals Plug in power cable and connect with Ethernet cable. | Swedbank-ingenico | |
| Desk/5000 |  | Plug in power cable and connect with Ethernet cable. | Chase | |
| Lane/3000 |  | / | Shift4/Chase | |
| Lane/5000 |  | / | / | |
| iCT220 & iPP 310 |  | https://wiki.erply.com/article/1099-estonia-ingenico-terminals Plug in power cable and connect with Ethernet cable. | Swedbank-ingenico | |
| iPP 320 |  | In order to use iPP 320, OpenEdge RCM software is needed. The app is used to connect the terminal to the PC. Plug in USB to the PC and configure through the RCM software. | TSYSCanada | |
| iSC Touch 250 |  | See Integration credentials Google Docs for exact steps to setup | Tripos | |
| Pax | S300 |  | https://wiki.erply.com/article/1889-pax-heartland-pos-web-app-setup Plug in power cable and connect with Ethernet cable. | PAX Heartland |
| A35 |  | https://wiki.erply.com/article/1889-pax-heartland-pos-web-app-setup Plug in power cable and connect with Ethernet cable. | PAX Heartland | |
| A80 |  | https://wiki.erply.com/article/1889-pax-heartland-pos-web-app-setup | PAX Heartland | |
| A930 |  | / | / | |
| A920 |  | / | / | |
| A920 Pro |  | / | / | |
| E600 Mini |  | / | / | |
| D210 |  | https://wiki.erply.com/article/526-pax-d210-wifi-setup | / | |
| Worldline | Yomani XR |  | Plug in USB cable to PC and connect with Ethernet cable. | Verifone |
| Elo | M60 |  | / | / |
Fiscal Devices
 |  |  |
| Posnet-Poland | Empirija-Lithuania | Posnet-Sweden |
